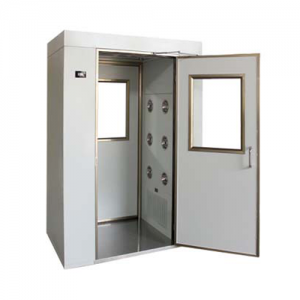

Air Shower

Air showers has become an integral component of modern clean room because their benefits more than pay for the small amount of space they occupy. With interlocking doors and automatic cycling, air shower act as a layer of protection controlling passage into and out of the clean room.

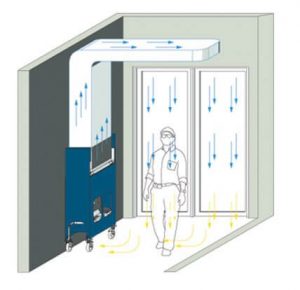

Air Shower is automatically actuated upon entry - releasing a bath of clean air from the side wall and ceiling. After a timed duration, shower shuts off and allow exit. The HEPA filter air is 99.99% efficient @0.3 micron, and is recirculated for contamination purposes.

Air Jet Velocity


18 - 22 m/sec

HEPA Filter Efficiency


99.99% @ 0.3 micron

Configuration


Available in Model S (Straight Thru) & Model L (Right angle passage)

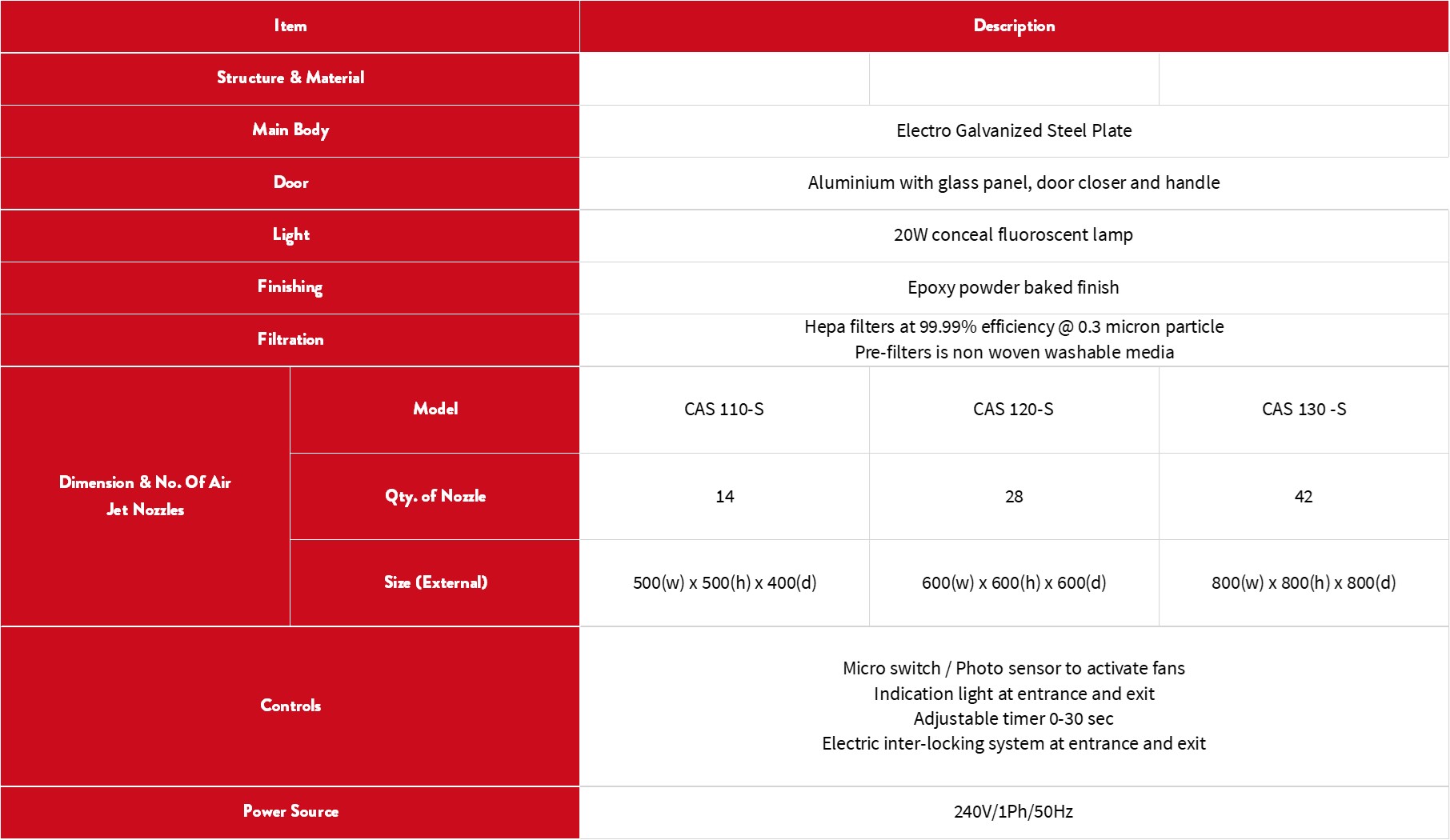

Technical Data
